GIS / BIM 切换组件

功能介绍

通过 GIS / BIM 切换组件，能够在 GIS 功能与 BIM 功能之间自由切换。

本文推荐使用右键菜单开启 3DTiles 模型交互事件进行 GIS / BIM 切换。

你可以使用组件 BIM 场景视图盒子组件以更好地控制视角与摄像机。

注：该功能使用了 elementUI 库，使用前需安装该库，具体方法见 elementUI 安装。

不妨通过代码示例在 Vue 中尝试一下：

在线演示

点击在线链接以查看在线演示。

组件代码示例

默认路径为 components/GisBimSwitch/index.vue

vue

<template>
  <div>
    <!-- GIS / BIM 切换组件 -->
    <el-card class="box-card">
      <div
        id="move-layer"
        class="title"
        @mousedown="mousedown"
        @mouseup="mouseup"
      >
        GIS / BIM 切换组件
      </div>
      <hr />
      <div class="button" @click="gbSwitch(false)">切换 GIS</div>
      <div class="button" @click="gbSwitch(true)">切换 BIM</div>
    </el-card>
  </div>
</template>

<script type="text/javascript">
import * as Cesium from 'cesium'

export default {

  methods: {
    init (bimRecallFunc = null, gisRecallFunc = null) {
      this.bimRecallFunc = bimRecallFunc;
      this.gisRecallFunc = gisRecallFunc;
    },

    gbSwitch (bool = true) {

      let that = this;

      const handler = new Cesium.ScreenSpaceEventHandler(window.viewer.scene.canvas);

      // 开启地下模式
      uniCore.model.undergroundMode(bool);

      if (bool) {
        this.$message(
          { message: "请点击所需切换到BIM场景的模型。" }
        )
        handler.setInputAction(function (e) {
          const pickObj = viewer.scene.pick(e.position);
          if (!!pickObj) {
            const modelId = pickObj.id?.id === undefined ? pickObj.tileset.debugPickedTile.id : pickObj.id?.id;
            const lockBoundingSphere = pickObj?.primitive.boundingSphere === undefined ? pickObj.tileset.boundingSphere : pickObj.primitive.boundingSphere;
            const lockAxiz = uniCore.position.cartesian3_2axis(lockBoundingSphere.center);

            that.$message(
              { message: `已点击到模型：${modelId}` }
            )

            // 触发回调函数
            if (!!that.bimRecallFunc) {
              that.bimRecallFunc(pickObj, lockBoundingSphere);
            }

            window.viewer.scene.backgroundColor = Cesium.Color.fromCssColorString("#b9d3ee");
            window.viewer.terrainProvider = null;

            // 只留该模型显示，其他全部隐藏
            uniCore.model.setPrimitivesShow(modelId, false, false)

            // 隐藏所有HTML标签
            try {
              window.htmlTipList && window.htmlTipList.forEach(e => {
                document.getElementById(e).style.display = "none";
              })
            } catch (error) {

            }

            // 隐藏所有标签
            // 记住先前的状态
            window.tipBeforeSet = []
            window.viewer.scene.primitives._primitives.forEach((e) => {
              try {
                for (let i of e._labels) {
                  window.tipBeforeSet.push(i.show)
                  i.show = false;
                }
              } catch (error) { }
            })

            // 打开视角锁定
            uniCore.position.lockTo(window.viewer, bool, lockAxiz, -45, -30, pickObj.primitive.boundingSphere.radius * 3);

            handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_CLICK)//移除事件

          }

        }, Cesium.ScreenSpaceEventType.LEFT_CLICK);
      } else {
        window.viewer.scene.backgroundColor = null;
        window.viewer.terrainProvider = window.terrainProvider;

        // 触发回调函数
        if (!!that.gisRecallFunc) {
          that.gisRecallFunc();
        }

        // 还原所有模型显示
        uniCore.model.setPrimitivesShow('', true)

        // 还原所有HTML标签
        try {
          window.htmlTipList && window.htmlTipList.forEach(e => {
            document.getElementById(e).style.display = "block";
          })
        } catch (error) {

        }

        // 还原所有标签
        window.viewer.scene.primitives._primitives.forEach((e) => {
          try {
            e._labels.forEach((ele, index) => {
              ele.show = window.tipBeforeSet[index]
            })
          } catch (error) { }
        })

        // 关闭视角锁定
        uniCore.position.lockTo(uniCore.viewer, bool, [0, 0]);

      }

    },

    /**
 * 鼠标与窗口拖动相关
 */
    mousedown (event, id) {
      if (document.elementFromPoint(event.clientX, event.clientY).id === 'move-layer') {
        this.selectElement = document.elementFromPoint(event.clientX, event.clientY).parentNode.parentNode;
        document.querySelectorAll('.box-card').forEach((e) => {
          e.style.zIndex = 1000;
        })
        this.selectElement.style.zIndex = 1001;
        var div1 = this.selectElement
        this.selectElement.style.cursor = 'move'
        this.isDowm = true
        var distanceX = event.clientX - this.selectElement.offsetLeft
        var distanceY = event.clientY - this.selectElement.offsetTop
        document.onmousemove = function (ev) {
          var oevent = ev || event
          div1.style.left = oevent.clientX - distanceX + 'px'
          div1.style.top = oevent.clientY - distanceY + 'px'
        }
        document.onmouseup = function () {
          document.onmousemove = null
          document.onmouseup = null
          div1.style.cursor = 'default'
        }
      }

    },
    //鼠标抬起
    mouseup () {
      this.isMove = false;
      this.selectElement = "null"
    }



  }
}
</script>

<style rel="stylesheet/scss" lang="scss" scoped>
::v-deep .el-card__body {
  padding: 20px 0px 0 0px;
}
::v-deep .box-card {
  position: absolute;
  top: 3%;
  left: 3%;
  width: 300px;
  z-index: 1;
  background: rgb(26 26 26 / 83%);
  border: 1px solid rgba(255, 255, 255, 0.3);
  box-shadow: 0px 24px 54px 0px rgba(35, 41, 50, 0.5);
  border-radius: 15px;
  padding: 0 24px 12px 24px;
  margin-bottom: 12px;
  -webkit-backdrop-filter: blur(10px);
  backdrop-filter: blur(10px);
  transition: none;
  user-select: none;

  .title {
    font-size: 18px;
    font-weight: bold;
    color: #fefeff;
    display: block;
    margin-left: 24px;
    margin-bottom: 10px;
    user-select: none;
    overflow: hidden;
    cursor: move;
  }

  hr {
    margin-left: 24px;
    margin-bottom: 10px;
    border: none;
    border-bottom: 1px solid #ffffff1a;
  }

  .button {
    display: inline-flex;
    margin: 5px 10px;
    color: white;
    background: #4d4d4dd1;
    border-radius: 10px;
    padding: 7px 20px;
    cursor: pointer;
    transition: 0.3s;
  }
}
</style>

调用代码示例

vue

<template>
  <div id="unicoreContainer">
    <!-- GIS / BIM 切换组件窗口卡片开始 -->
    <gbSet ref="gbSetId"></gbSet>
    <!-- GIS / BIM 切换组件窗口卡片结束 -->
    <!-- BIM视图盒子组件开始 -->
    <bcSet ref="bcSetId"></bcSet>
    <!-- BIM视图盒子组件结束 -->
  </div>
</template>

<script>
import { UniCore } from 'unicore-sdk'
import { config } from 'unicore-sdk/unicore.config'
import 'unicore-sdk/Widgets/widgets.css'
import gbSet from '@/components/GisBimSwitch/index'; //GIS/BIM切换组件
import bcSet from '@/components/BimCubeSet/index.vue'; //BIM视图盒子组件

export default {

  components: {
    gbSet, bcSet
  },
  // 生命周期 - 挂载完成（可以访问DOM元素）
  mounted () {
    this.init();
  },

  // 方法集合
  methods: {

    /**
    * 通用图形引擎初始化
    */
    init () {

      // 初始化UniCore

      // 目前采用Cesium的地形&底图数据，这里配置Cesium的token
      let accessToken = "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJqdGkiOiIxNjEwMzI4My01MjBmLTQzYzktOGZiMS0wMDRhZjE0N2IyMGIiLCJpZCI6MTc1NzkyLCJpYXQiOjE3MTM3NzQ3OTh9.zU-R4MNvHr8rvn1v28PQfDImyutnpPF2lmEgGeSPckQ";
      // 初始化unicore
      let uniCore = new UniCore(config, accessToken);
      uniCore.init("unicoreContainer");
      window.uniCore = uniCore;
      let viewer = uniCore.viewer;

      // 视角初始化
      uniCore.position.buildingPosition(viewer, [113.12380548015745, 28.250758831850005, 700], -20, -45, 1);

      // 初始化视图盒子方法
      this.$refs.gbSetId.init(
        (pickObj, boundingSphere) => this.$refs.bcSetId.show(uniCore, uniCore.position.cartesian3_2axis(boundingSphere.center), boundingSphere.radius * 3),
        () => this.$refs.bcSetId.hide()
      );

      /**
       * 小别墅1号示例
       */
      let options = {
        id: '小别墅1号示例',
        url: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/tileset.json',
        propertysURL: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/01 小别墅.json'
      }
      //加载3dtiles
      uniCore.model.createTileset(options.url, options).then(cityLeft => {
        uniCore.model.changeModelPos(cityLeft, [113.12098820449636, 28.256150218457687, 130], [0, 0, 0])

        // 开启右键菜单、点击高亮、属性property
        uniCore.interact.setTilesRightClickMenu([{
          id: '小别墅1号示例',
          url: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/tileset.json',
          propertysURL: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/01 小别墅.json'
        }], (property) => console.log(property));
      })



      /**
         * 小别墅2号示例
         */
      uniCore.model.addGltf({
        lon: 0,
        lat: 0,
        height: 0
      }, {
        id: "小别墅2号示例",
        name: null,
        url: '../../../assets/gltf/小别墅.glb',
        scale: 1.0,
        property: null
      }).then(cityModel => {
        uniCore.model.changeModelPos(cityModel, [113.12098820449636, 28.257150218457687, 130], [90, 0, 0])
      })

      // 开启glTF模型右键交互
      uniCore.interact.setGltfRightClickMenu((property) => console.log(property));
    }
  }

}
</script>
<style scoped>
#unicoreContainer {
  position: absolute;
  top: 0;
  left: 0;
  width: 100%;
  height: 100%;
  overflow: hidden;
  background: black;
}
</style>

示例运行结果

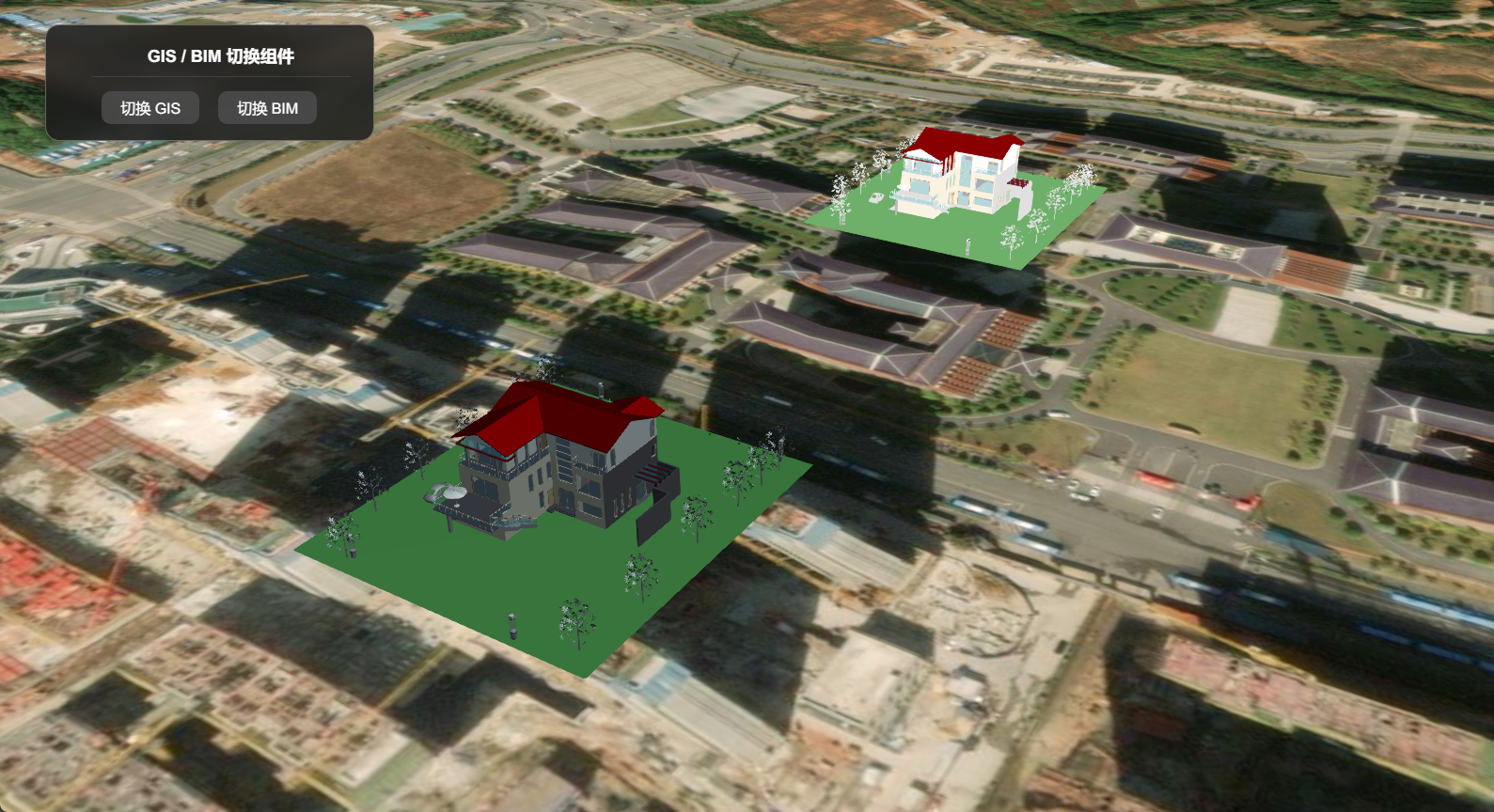

切换 GIS 模式效果（加载多源异构数据及GIS系统）：

Alt text

切换 BIM 模式效果（切换到单个模型的BIM系统）：

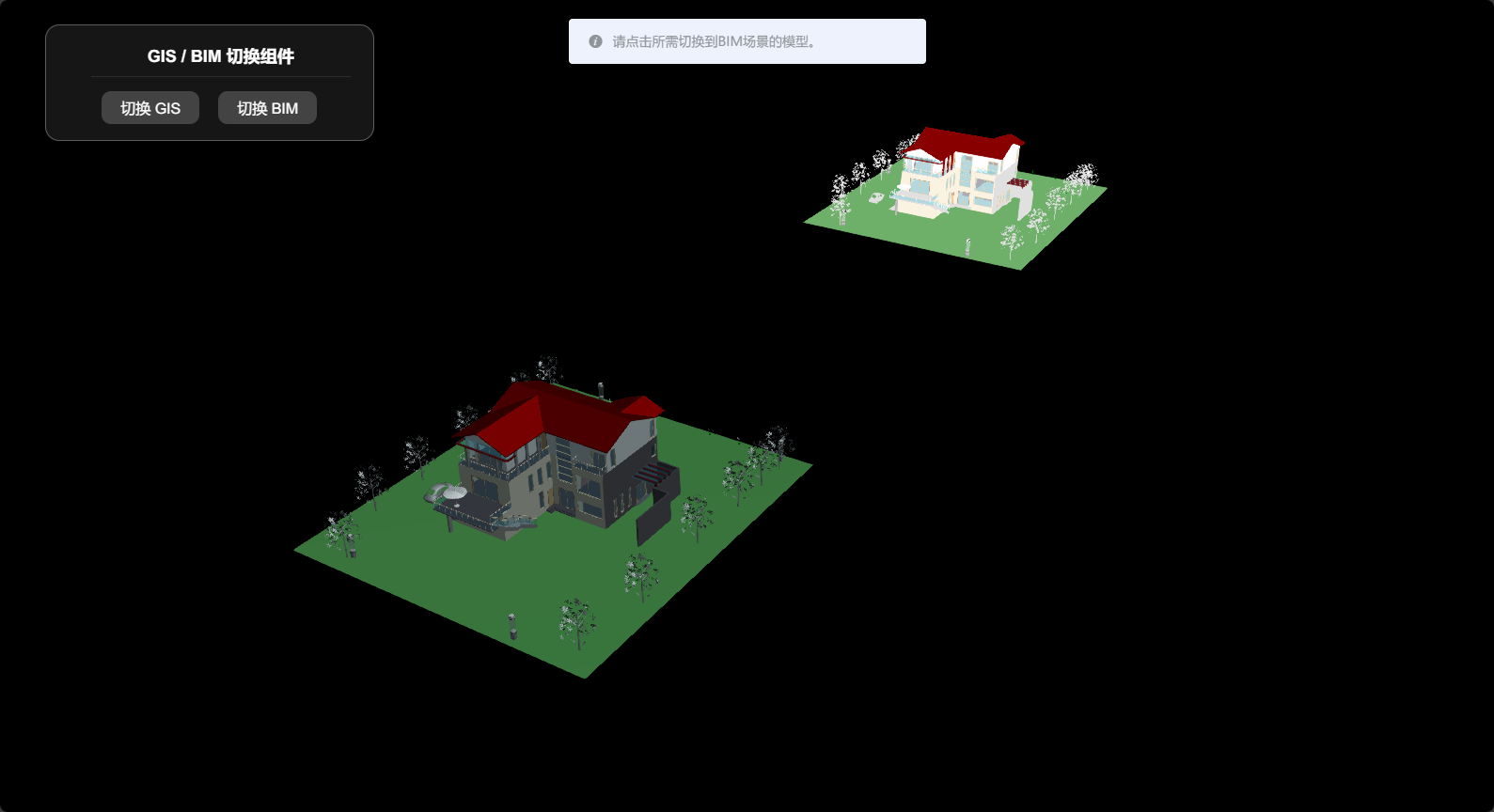

等待点击所需切换到 BIM 模式的模型（示例中分别为小别墅的 3DTiles 模型及 glTF模型）

Alt text

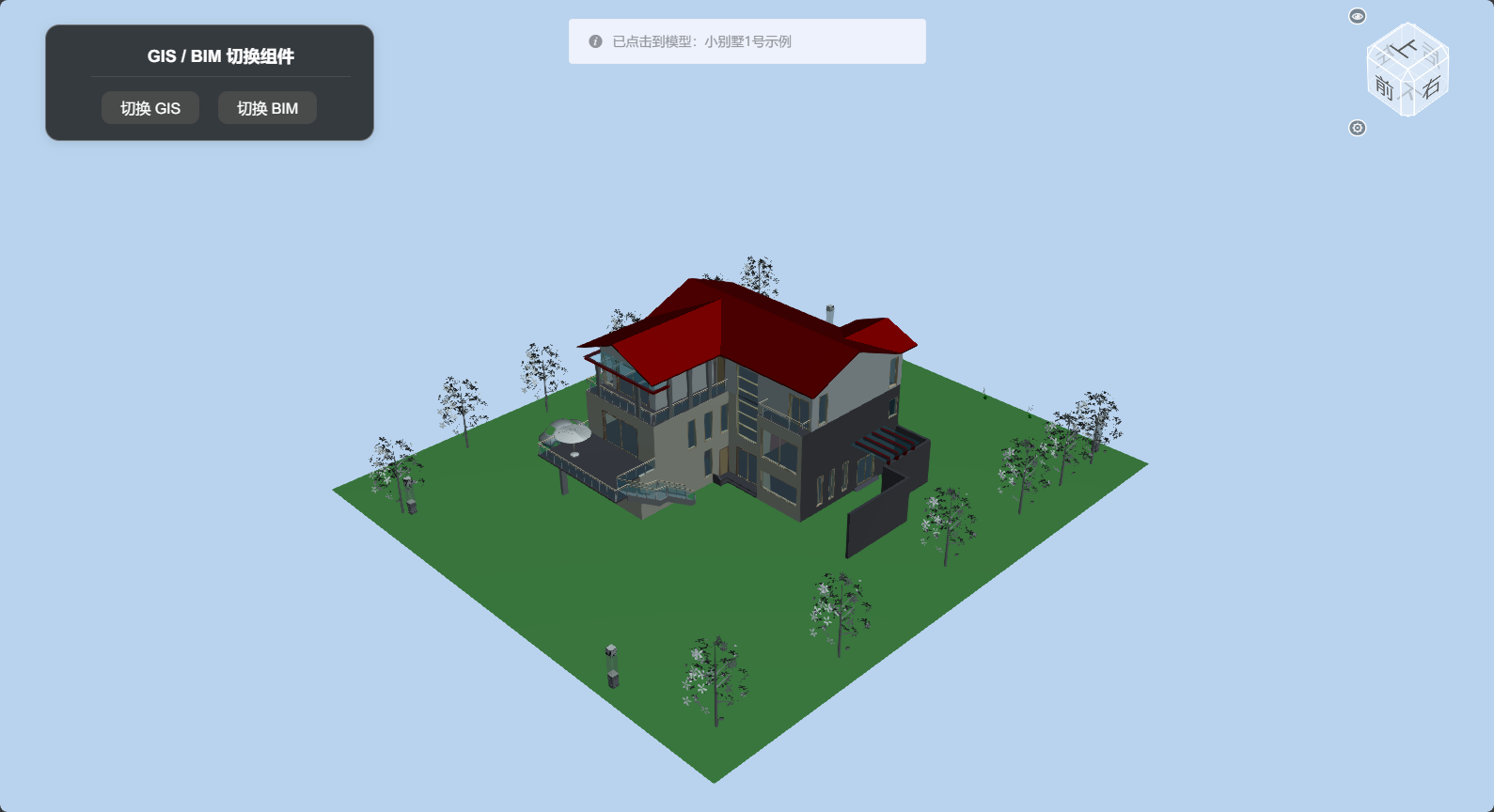

切换至对应 BIM 模式模型

Alt text

调用代码示例中的关键代码

组件提供 init 方法，参数分别为切换 BIM 场景触发的回调函数及切换至 GIS 场景触发的回调函数。其中切换 BIM 场景触发的回调函数提供两个参数，分别是点击模型返回的tileset，及模型的包围盒数据。

this.$refs.gbSetId.init(
  bimRecallFunc,
  gisRecallFunc
);

示例中使用了 BIM 场景视图盒子组件 :

// 初始化视图盒子方法
this.$refs.gbSetId.init(
  (pickObj, boundingSphere) => this.$refs.bcSetId.show(uniCore, uniCore.position.cartesian3_2axis(boundingSphere.center), boundingSphere.radius * 3),
  () => this.$refs.bcSetId.hide()
);
