图层管理树组件
功能介绍
自动获取当前场景所有图元，并能控制对应图元的显隐。
注：该功能使用了 elementUI 库，使用前需安装该库，具体方法见 elementUI 安装 。
注：该功能使用了 vue-giant-tree 库，使用前需安装该库（该组件库有BUG，如遇到报错可尝试先安装该组件库0.1.0版本，后安装该组件库1.0.0版本）：
sh
npm install vue-giant-tree@1.0.0不妨通过代码示例在 Vue 中尝试一下：
在线演示
点击 在线链接 以查看在线演示。
组件代码示例
默认路径为 components/LayerControlSet/index.vue
vue
<template>
<div>
<!-- 图层管理树 -->
<el-card class="box-card">
<div
id="move-layer"
class="title"
@mousedown="mousedown"
@mouseup="mouseup"
>
图层管理树
</div>
<hr />
<tree
:setting="setting"
:nodes="nodes"
@onCheck="onCheck"
@onCreated="handleCreated"
/>
<span class="loadingText" v-if="nodes.length === 0"
>图层管理树加载中..</span
>
</el-card>
</div>
</template>
<script type="text/javascript">
import tree from 'vue-giant-tree'
import * as Cesium from 'cesium'
export default {
components: {
tree
},
data () {
return {
setting: {
check: {
enable: true
},
data: {
simpleData: {
enable: true,
pIdKey: 'pid'
}
},
view: {
showIcon: false
}
},
nodes: [],
}
},
methods: {
createVal () {
this.nodesList = { 'primitives': [], 'model': [], 'tip': [], 'html': [], 'layer': [] }
},
init (uniCore) {
window.uniCore = uniCore;
this.nodes = [];
this.initPrimitiveNodes();
this.initComplexModelNodes();
this.initTipNodes();
this.initHTMLTipNodes();
this.initLayerNodes();
},
initPrimitiveNodes () {
this.getPrimitive();
if (this.nodesList['primitives'].length !== 0) this.nodes.push({ checked: true, id: 0, name: "⭐️ 全部图元", open: true, pid: -10000 })
this.nodesList['primitives'].forEach((e, index) => {
// 将第一个index设为2开始，将-1留给pid使用
index = this.idNum + 1
// 计算使用了多少个idNum
this.idNum += 1
let newNode = {};
newNode.id = index + e;
newNode.pid = 0; // 图元id为0
newNode.name = e;
newNode.checked = true;
newNode.open = false;
this.nodes.push(newNode);
})
},
initComplexModelNodes () {
let myNodes = []
this.idNum = 0
const level = []
const category = []
const family = []
if (this.nodesList['model'].length !== 0) this.nodes.push({ checked: true, id: -1, name: "🌳 模型信息树", open: false, pid: -10000 })
this.nodesList['model'].forEach((e, index) => {
// 将第一个index设为1开始，将0留给pid使用
index = this.idNum + 1
// 计算使用了多少个idNum
this.idNum += 1
let newNode = {};
newNode.id = index;
newNode.pid = -1; // 模型id为-1
newNode.name = e.id;
newNode.checked = true;
newNode.open = false;
this.nodes.push(newNode);
window.uniCore.model.fetchPropertys(e.propertysURL).then((data) => {
data.forEach((ele, i) => {
// 这里可以设置radio变量为按楼层过滤、按类名过滤或是按族family过滤
let radio = '按楼层过滤';
// 首先将level、category、family依次找到
let levelRadio, categoryRadio, familyRadio
if (radio == '按楼层过滤') {
levelRadio = ele.level
categoryRadio = ele.category
familyRadio = ele.family
} else if (radio == '按类名过滤') {
levelRadio = ''
categoryRadio = ele.category
familyRadio = ele.family
} else {
levelRadio = ''
categoryRadio = ''
familyRadio = ele.family
}
if (levelRadio != '') {
// 找到level，将没记录的作为父级元素
if (ele.hasOwnProperty('level') && level.indexOf(index + levelRadio) === -1) {
myNodes.pid = index
myNodes.id = myNodes.pid + levelRadio
myNodes.name = levelRadio
myNodes.open = false
myNodes.checked = true
level.push(myNodes.id)
this.nodes.push(myNodes)
myNodes = []
}
}
if (categoryRadio != '') {
// 找到category，将没记录的作为二级元素
if (ele.hasOwnProperty('category') && category.indexOf(index + levelRadio + categoryRadio) === -1) {
myNodes.pid = index + levelRadio
myNodes.id = myNodes.pid + categoryRadio
myNodes.name = categoryRadio
myNodes.open = false
myNodes.checked = true
category.push(myNodes.id)
this.nodes.push(myNodes)
myNodes = []
}
}
if (familyRadio != '') {
// 找到family，将没记录的作为三级元素
if (ele.hasOwnProperty('family') && family.indexOf(index + '' + levelRadio + categoryRadio + familyRadio) === -1) {
myNodes.pid = index + levelRadio + categoryRadio
myNodes.id = myNodes.pid + familyRadio
myNodes.name = familyRadio
myNodes.open = false
myNodes.checked = true
family.push(myNodes.id)
this.nodes.push(myNodes)
myNodes = []
}
}
// 将所有的子项都作为四级元素，自动匹配对应的父级元素
const item = []
item.pid = index + levelRadio + categoryRadio + familyRadio
item.id = item.pid + ele.name
item.open = false
item.name = ele.name
item.checked = true
item.instanceid = ele._BATCHID === undefined ? ele.ElementID : ele._BATCHID;
this.nodes.push(item)
})
})
});
},
initTipNodes () {
this.getTip();
if (Object.keys(this.nodesList['tip']).length !== 0) this.nodes.push({ checked: true, id: -2, name: "🌳 普通标签信息树", open: false, pid: -10000 })
Object.entries(this.nodesList['tip']).forEach((e, index) => {
// 将第一个index设为2开始，将-1留给pid使用
index = this.idNum + 1
// 计算使用了多少个idNum
this.idNum += 1
let newNode = {};
newNode.id = index + "->tip<-" + e[0];
newNode.pid = -2; // 标签id为-2
newNode.name = e[0];
newNode.checked = true;
newNode.open = false;
this.nodes.push(newNode);
e[1].forEach((ele) => {
let newNode = {};
newNode.pid = index + "->tip<-" + e[0]; // 标签id为-2
newNode.id = newNode.pid + ele.text || ele.id;
newNode.name = ele.text || ele.id;
newNode.checked = true;
newNode.open = false;
this.nodes.push(newNode);
})
});
},
initHTMLTipNodes () {
this.getHTMLTip();
if (this.nodesList['html'].length !== 0) this.nodes.push({ checked: true, id: -3, name: "📖 HTML标签列表", open: false, pid: -10000 })
this.nodesList['html'].forEach((e, index) => {
// 将第一个index设为2开始，将-1留给pid使用
index = this.idNum + 1
// 计算使用了多少个idNum
this.idNum += 1
let newNode = {};
newNode.id = index + e.id;
newNode.pid = -3; // HTMLid为-3
newNode.name = e.id;
newNode.checked = true;
newNode.open = false;
this.nodes.push(newNode);
})
},
initLayerNodes () {
this.getLayer();
if (this.nodesList['layer'].length !== 0) this.nodes.push({ checked: true, id: -4, name: "🌎 GIS数据", open: false, pid: -10000 })
this.nodesList['layer'].forEach((e, index) => {
// 将第一个index设为2开始，将-1留给pid使用
index = this.idNum + 1
// 计算使用了多少个idNum
this.idNum += 1
let newNode = {};
newNode.id = index + e.id;
newNode.pid = -4; // 底图数据id为-4
newNode.name = e.id;
newNode.checked = e.checked;
newNode.open = false;
this.nodes.push(newNode);
})
},
getPrimitive () {
this.nodesList['primitives'] = window.uniCore.model.getPrimitivesName();
},
getTip () {
/**
* 标签
*/
let idList = [];
viewer.scene.primitives._primitives.forEach((e) => {
try {
for (let i of e._labels) {
if (idList[i._id] === undefined) {
idList[i._id] = []
}
idList[i._id].push({ 'text': i._text, 'tile': i })
}
} catch (error) { }
})
this.nodesList['tip'] = idList;
},
getHTMLTip () {
/**
* 标签
*/
let idList = [];
// 考虑 HTML 标签
if (window.htmlTipList && window.htmlTipList.length !== 0) {
window.htmlTipList.forEach(e => {
idList.push({ 'id': e, 'dom': document.getElementById(e) })
})
}
this.nodesList['html'] = idList;
},
getLayer () {
// 底图
window.viewer.imageryLayers._layers.forEach((e, index) => {
this.nodesList['layer'].push({ 'id': '底图数据-' + (index + 1), 'tile': e, 'checked': true });
})
// 地形
if (!!window.viewer.terrainProvider) {
this.nodesList['layer'].push({ 'id': '地形数据', 'tile': window.viewer.terrainProvider, 'checked': true });
window.terrainProvider = window.viewer.terrainProvider;
}
// 自带天体、天空盒
this.nodesList['layer'].push({ 'id': '月球', 'tile': window.viewer.scene.moon, 'checked': window.viewer.scene.moon.show });
this.nodesList['layer'].push({ 'id': '太阳', 'tile': window.viewer.scene.sun, 'checked': window.viewer.scene.sun.show });
this.nodesList['layer'].push({ 'id': '雾气', 'tile': window.viewer.scene.fog, 'checked': window.viewer.scene.fog.show });
this.nodesList['layer'].push({ 'id': '天空盒', 'tile': window.viewer.scene.skyBox, 'checked': window.viewer.scene.skyBox.show });
this.nodesList['layer'].push({ 'id': '大气层', 'tile': window.viewer.scene.skyAtmosphere, 'checked': window.viewer.scene.skyAtmosphere.show });
this.nodesList['layer'].push({ 'id': '地球', 'tile': window.viewer.scene.globe, 'checked': window.viewer.scene.globe.show });
},
onCheck (evt, treeId, treeNode) {
let that = this;
getParentNodes(treeNode);
function getParentNodes (node) {
if (node && node.getParentNode() !== null) {
getParentNodes(node.getParentNode());
} else {
let parentNode = { "id": node.id, "name": node.name };
if (parentNode.id === 0) {
// 全部图元
let primitivesShowList = [];
node.children.forEach(nodes => {
if (nodes.checked) primitivesShowList.push(nodes.name);
})
window.uniCore.model.setPrimitivesShow(primitivesShowList)
} else if (parentNode.id === -1) {
// 模型信息树
if (treeNode.id === parentNode.id) {
// 相当于全选的时候
treeNode.children.forEach(nodes => {
that.setModelTree(nodes);
})
} else {
// 只选择了信息树的其中一个模型的时候
that.setModelTree(treeNode);
}
} else if (parentNode.id === -2) {
// 普通标签信息树
that.setTipTree(treeNode);
} else if (parentNode.id === -3) {
// HTML标签信息树
that.setHTMLTipTree(treeNode);
} else if (parentNode.id === -4) {
// 底图数据
that.setLayer(treeNode);
}
}
}
},
/**
* 设置模型信息树
*/
setModelTree (treeNode) {
// 数组去重
function handleArr (arr) {
return ([...new Set(arr)])
}
// 找到节点下所有的子节点
let findChild = function (array) {
for (let i = 0; i < array.length; i++) {
if (array[i].hasOwnProperty("children")) {
findChild(array[i].children)
} else {
allClickInstanceid.push(array[i].instanceid)
}
}
}
// 递归找到节点最上层父节点
let findParent = function (array) {
return array.getParentNode().getParentNode() === null ? array : findParent(array.getParentNode());
}
// 最新返回的treeNode所点击到的所有elementID
let allClickInstanceid = []
if (treeNode.hasOwnProperty("children")) {
findChild(treeNode.children)
} else {
allClickInstanceid.push(treeNode.instanceid)
}
// 以下代码将应用上面所得到的id序列进行显隐操作
// 所展示的模型ID，依据为initNodes函数的index，据此找到allClickInstanceid对应的哪个模型，应对多模型的信息树情况
let parentId = findParent(treeNode).id;
// if (parentId === null)
let parentTileset = this.nodesList['model'][parentId - 1].tileset;
// 初始化下selectElementID
window.selectElementID === undefined ? window.selectElementID = [] : window.selectElementID;
let hideElementList = window.selectElementID.find(e => { return e.id === parentTileset.debugPickedTile.id })
if (hideElementList === undefined) {
window.selectElementID.push({ id: parentTileset.debugPickedTile.id, eleID: [] })
hideElementList = window.selectElementID.find(e => { return e.id === parentTileset.debugPickedTile.id })
}
// 如果最新返回的treeNode为选中状态，那里面包含的elementID对应的构件都需要显示
if (!treeNode.checked) {
hideElementList.eleID.push(...allClickInstanceid)
// 数组去重
hideElementList.eleID = handleArr(hideElementList.eleID);
} else {
// 数组去重
hideElementList.eleID = handleArr(hideElementList.eleID);
// 如果最新返回的treeNode为取消选中状态，那里面包含的elementID对应的构件都需要隐藏
allClickInstanceid.forEach(e => {
hideElementList.eleID.splice(hideElementList.eleID.indexOf(e), 1)
})
}
// 找到与elementID关联的构件方法
parentTileset.tileVisible.addEventListener((tile) => {
let content = tile.content;
let featuresLength = content.featuresLength;
for (let i = 0; i < featuresLength; i++) {
let feature = content.getFeature(i);
let elementId = feature.getProperty("id")
if (hideElementList.eleID.indexOf(elementId) !== -1) {
// 获得与elementID关联的构件feature
feature.show = false;
} else {
feature.show = true;
}
}
// 优化性能，自动清除事件
setTimeout(() => {
parentTileset.tileVisible._listeners = [];
parentTileset.tileVisible._scopes = [];
})
});
},
/**
* 设置标签构件树
*/
setTipTree (treeNode) {
// 找到节点下所有的子节点
let allNode = [];
let findChild = function (array) {
if (array.hasOwnProperty("children")) {
for (let i = 0; i < array.children.length; i++) {
findChild(array.children[i])
}
} else {
allNode.push({ "id": array.pid.split('->tip<-')[1], "text": array.name, "checked": array.checked })
}
}
findChild(treeNode)
allNode.forEach(e => {
window.uniCore.tip.hideTipByIDText(e.id, e.text, !e.checked);
})
},
/**
* 设置HTML标签构件树
*/
setHTMLTipTree (treeNode) {
// 找到节点下所有的子节点
let allNode = [];
let findChild = function (array) {
if (array.hasOwnProperty("children")) {
for (let i = 0; i < array.children.length; i++) {
findChild(array.children[i])
}
} else {
allNode.push({ "id": array.name, "checked": array.checked })
}
}
findChild(treeNode)
allNode.forEach(e => {
// 防止出现空点
try {
document.getElementById(e.id).style.display = e.checked === true ? "block" : "none";
} catch (error) {
}
})
},
/**
* 设置底图数据
*/
setLayer (treeNode) {
let that = this;
// 找到节点下所有的子节点
let allNode = [];
let findChild = function (array) {
if (array.hasOwnProperty("children")) {
for (let i = 0; i < array.children.length; i++) {
findChild(array.children[i])
}
} else {
allNode.push({ "id": array.name, "tile": that.nodesList['layer'].find(e => { if (e.id === array.name) return e })?.tile, 'checked': array.checked })
}
}
findChild(treeNode)
allNode.forEach(async e => {
if (e.id === '地形数据') {
// console.log(window.viewer.terrainProvider);
window.viewer.terrainProvider = e.checked === true ? window.terrainProvider : new Cesium.EllipsoidTerrainProvider({});
} else if (e.id.split('-')[0] === '底图数据') {
// 底图数据
e.tile.show = e.checked
} else {
// 天体、天空盒
e.tile.show = e.checked
}
})
},
handleCreated: function (ztreeObj) {
this.ztreeObj = ztreeObj;
// onCreated 中操作ztreeObj对象展开第一个节点
ztreeObj.expandNode(ztreeObj.getNodes()[0], true);
},
/**
* 鼠标与窗口拖动相关
*/
mousedown (event, id) {
if (document.elementFromPoint(event.clientX, event.clientY).id === 'move-layer') {
this.selectElement = document.elementFromPoint(event.clientX, event.clientY).parentNode.parentNode;
document.querySelectorAll('.box-card').forEach((e) => {
e.style.zIndex = 1000;
})
this.selectElement.style.zIndex = 1001;
var div1 = this.selectElement
this.selectElement.style.cursor = 'move'
this.isDowm = true
var distanceX = event.clientX - this.selectElement.offsetLeft
var distanceY = event.clientY - this.selectElement.offsetTop
document.onmousemove = function (ev) {
var oevent = ev || event
div1.style.left = oevent.clientX - distanceX + 'px'
div1.style.top = oevent.clientY - distanceY + 'px'
}
document.onmouseup = function () {
document.onmousemove = null
document.onmouseup = null
div1.style.cursor = 'default'
}
}
},
//鼠标抬起
mouseup () {
this.isMove = false;
this.selectElement = "null"
}
},
mounted () {
this.createVal();
},
}
</script>
<style rel="stylesheet/scss" lang="scss" scoped>
::v-deep .el-card__body {
padding: 20px 20px 0 20px;
}
::v-deep .box-card::-webkit-scrollbar {
display: none;
}
::v-deep .box-card {
position: absolute;
top: 3%;
left: 3%;
z-index: 1;
background: rgb(26 26 26 / 83%);
border: 1px solid rgba(255, 255, 255, 0.3);
box-shadow: 0px 24px 54px 0px rgba(35, 41, 50, 0.5);
border-radius: 10px;
padding: 0 24px 24px 0px;
margin-bottom: 12px;
-webkit-backdrop-filter: blur(10px);
backdrop-filter: blur(10px);
max-width: 370px;
max-height: 70%;
min-width: 250px;
overflow-y: scroll;
transition: none;
user-select: none;
.el-table {
border-radius: 15px;
}
.title {
font-size: 18px;
font-weight: bold;
color: #fefeff;
display: block;
margin-left: 24px;
margin-bottom: 10px;
user-select: none;
overflow: hidden;
cursor: move;
}
hr {
margin-left: 24px;
margin-bottom: 10px;
border: none;
border-bottom: 1px solid #ffffff1a;
}
.button {
display: inline-flex;
margin: 5px 10px;
color: white;
background: #ffffff00;
border-radius: 5px;
cursor: pointer;
}
.loadingText {
color: #adadad94;
margin-left: 24px;
}
}
::v-deep .ztree li a {
color: #e1e1e1;
}
</style>调用代码示例
vue
<template>
<div id="unicoreContainer">
<!-- 图层管理树卡片开始 -->
<lcSet ref="lcSetId"></lcSet>
<!-- 图层管理树卡片结束 -->
<!-- HTML 标签测试开始 -->
<div id="test">你可以将任意HTML元素固定在某处</div>
<div id="test2">这是第二个HTML标签</div>
<!-- HTML 标签测试结束 -->
</div>
</template>
<script>
import { UniCore } from 'unicore-sdk'
import { config } from 'unicore-sdk/unicore.config'
import 'unicore-sdk/Widgets/widgets.css'
import lcSet from '@/components/LayerControlSet/index.vue'; //图层管理树组件
import * as Cesium from 'cesium'
export default {
components: {
lcSet
},
// 生命周期 - 挂载完成（可以访问DOM元素）
mounted () {
this.init();
},
// 方法集合
methods: {
/**
* 通用图形引擎初始化
*/
init () {
// 初始化UniCore
// 目前采用Cesium的地形&底图数据，这里配置Cesium的token
let accessToken = "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJqdGkiOiIxNjEwMzI4My01MjBmLTQzYzktOGZiMS0wMDRhZjE0N2IyMGIiLCJpZCI6MTc1NzkyLCJpYXQiOjE3MTM3NzQ3OTh9.zU-R4MNvHr8rvn1v28PQfDImyutnpPF2lmEgGeSPckQ";
// 初始化unicore
let uniCore = new UniCore(config, accessToken);
uniCore.init("unicoreContainer");
window.uniCore = uniCore;
let viewer = uniCore.viewer;
// 视角初始化
uniCore.position.buildingPosition(viewer, [113.12380548015745, 28.250758831850005, 700], -20, -45, 1);
// 模型示例1
const options = {
id: '小别墅1号示例',
url: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/tileset.json',
propertysURL: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/01 小别墅.json'
}
//加载3dtiles
uniCore.model.createTileset(options.url, options, (tileset) => {
let customShader = new Cesium.CustomShader({
// lightingModel: Cesium.LightingModel.UNLIT,
lightingModel: Cesium.LightingModel.PBR,
//片元着色器
fragmentShaderText: `
void fragmentMain(FragmentInput fsInput, inout czm_modelMaterial material) {
vec3 positionMC = fsInput.attributes.positionMC;
//此处以下为光线效果
material.diffuse += material.diffuse * (1.0);
}`
})
tileset.customShader = customShader
}).then(cityModel => {
uniCore.model.changeModelPos(cityModel, [113.12098820449636, 28.256150218457687, 130], [0, 0, 0], [23.8, 23.8, 23.8])
// 绑定信息树
let modelOption = {
...options,
tileset: cityModel
}
this.$refs.lcSetId.nodesList['model'].push(modelOption)
})
// 模型示例2
const options_2 = {
id: '小别墅2号示例',
url: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/tileset.json',
propertysURL: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/01 小别墅.json'
}
//加载3dtiles
uniCore.model.createTileset(options_2.url, options_2).then(cityModel => {
uniCore.model.changeModelPos(cityModel, [113.11098820449636, 28.257150218457687, 130], [0, 0, 0], [23.8, 23.8, 23.8])
// 绑定信息树
let modelOption = {
...options_2,
tileset: cityModel
}
this.$refs.lcSetId.nodesList['model'].push(modelOption)
})
// 开启右键菜单、点击高亮、属性property
uniCore.interact.setTilesRightClickMenu([{
id: '小别墅1号示例',
url: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/tileset.json',
propertysURL: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/01 小别墅.json'
}, {
id: '小别墅2号示例',
url: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/tileset.json',
propertysURL: '../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/01 小别墅.json'
}], (property) => console.log(property), (pickObj) => console.log(pickObj), () => console.log("BIM"), () => console.log("GIS"));
// 加入墙体图元 primitives
uniCore.model.paintWall("墙体测试", [[113.12380548015745, 28.260758831850005], [113.12380548015745, 28.240758831850005]], 500, 100, "#e46962")
uniCore.model.paintLine("线条测试", [[113.12123548015745, 28.280758831850005], [113.12380548015745, 28.240758831850005], [113.12070548015745, 28.240758831850005]], 75, "#c3e88d", 5)
uniCore.model.createMaterialLine([113.12123548015745, 28.255978831850005, 50], [113.12123548015745, 28.245978831850005, 80])
// 加入水流特效 entities
uniCore.model.createMaterialLine([113.12123548015745, 28.255978831850005, 50], [113.12123548015745, 28.245978831850005, 80])
// 加入普通标签
uniCore.tip.createTip('标签组测试1', "普通标签", [113.12380548015745, 28.255758831850005, 150], null, '#0361f3', 1, [250, 1.0, 550, 1.0], [250000, 1.0, 5500000, 0.0])
// 加入带有点击事件的标签
uniCore.tip.createTip('标签组测试1', "可点击标签-1", [113.12390548015745, 28.255568831850005, 100], () => { alert("你点击了 可点击标签-1") }, '#f3125f', 1, [250, 1.0, 550, 1.0], [250000, 1.0, 5500000, 0.0])
uniCore.tip.createTip('标签组测试2', "可点击标签-2", [113.12374548015745, 28.256758831850005, 100], () => { alert("可点击标签-2 被你点击到了~") }, '#f3125f', 1, [250, 1.0, 550, 1.0], [250000, 1.0, 5500000, 0.0])
// 加入 HTML 标签
uniCore.tip.createHtmlTip("test", [113.12098820449636, 28.256150218457687, 130], false)
uniCore.tip.createHtmlTip("test2", [113.12374548015745, 28.256150218457687, 50], false)
// 原本设计是作为开关调用的，这里使用定时器先展示功能
setTimeout(() => {
// 图层树初始化
this.$refs.lcSetId.init(uniCore);
}, 1000)
}
}
}
</script>
<style scoped>
#unicoreContainer {
position: absolute;
top: 0;
left: 0;
width: 100%;
height: 100%;
overflow: hidden;
background: black;
}
#test {
position: absolute;
font-size: 13px;
background: #fff;
border-radius: 15px;
padding: 5px 20px;
cursor: pointer;
user-select: none;
z-index: 999;
}
#test2 {
position: absolute;
font-size: 13px;
background: #fff;
border-radius: 15px;
padding: 5px 20px;
cursor: pointer;
user-select: none;
z-index: 999;
}

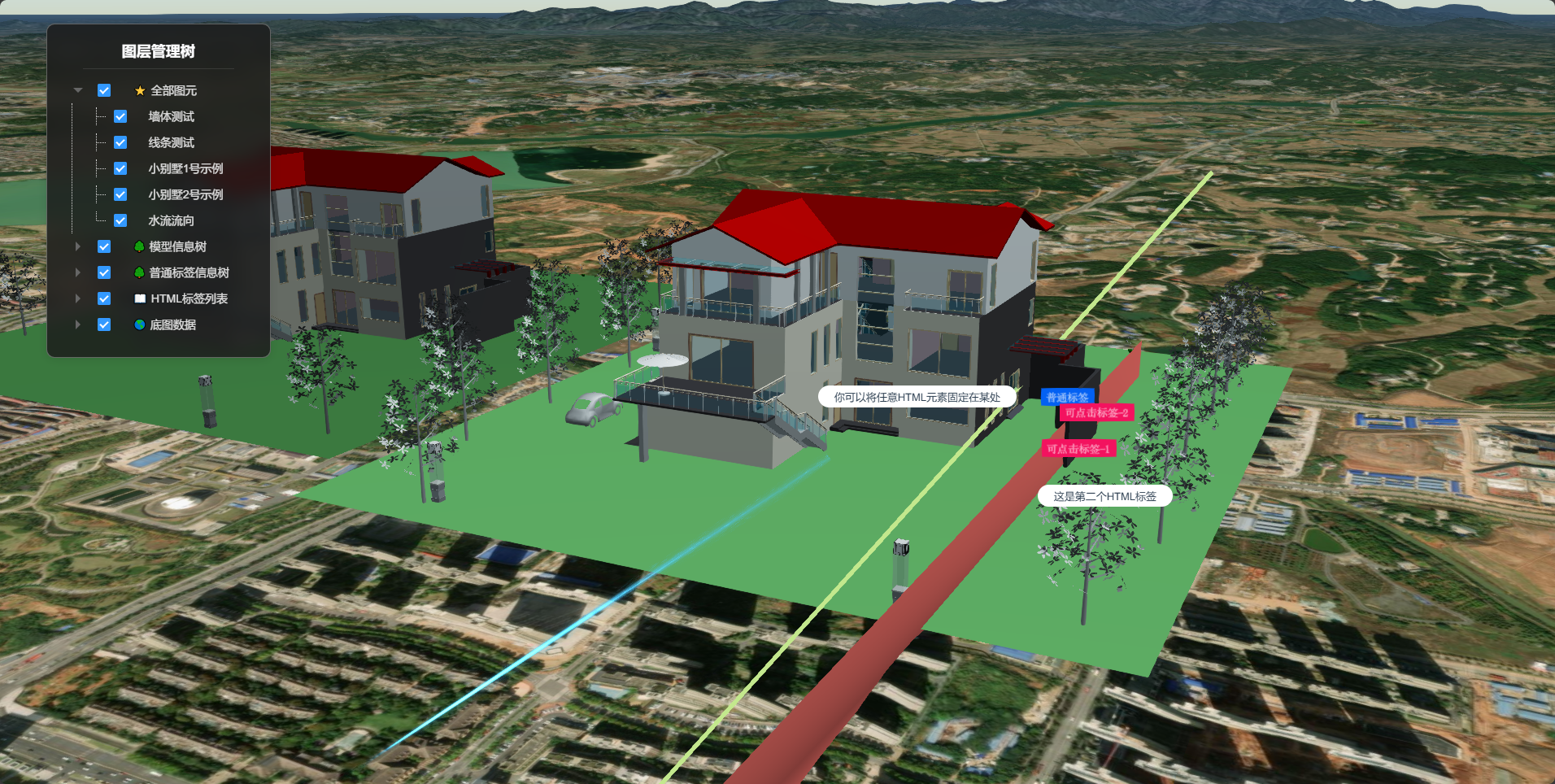

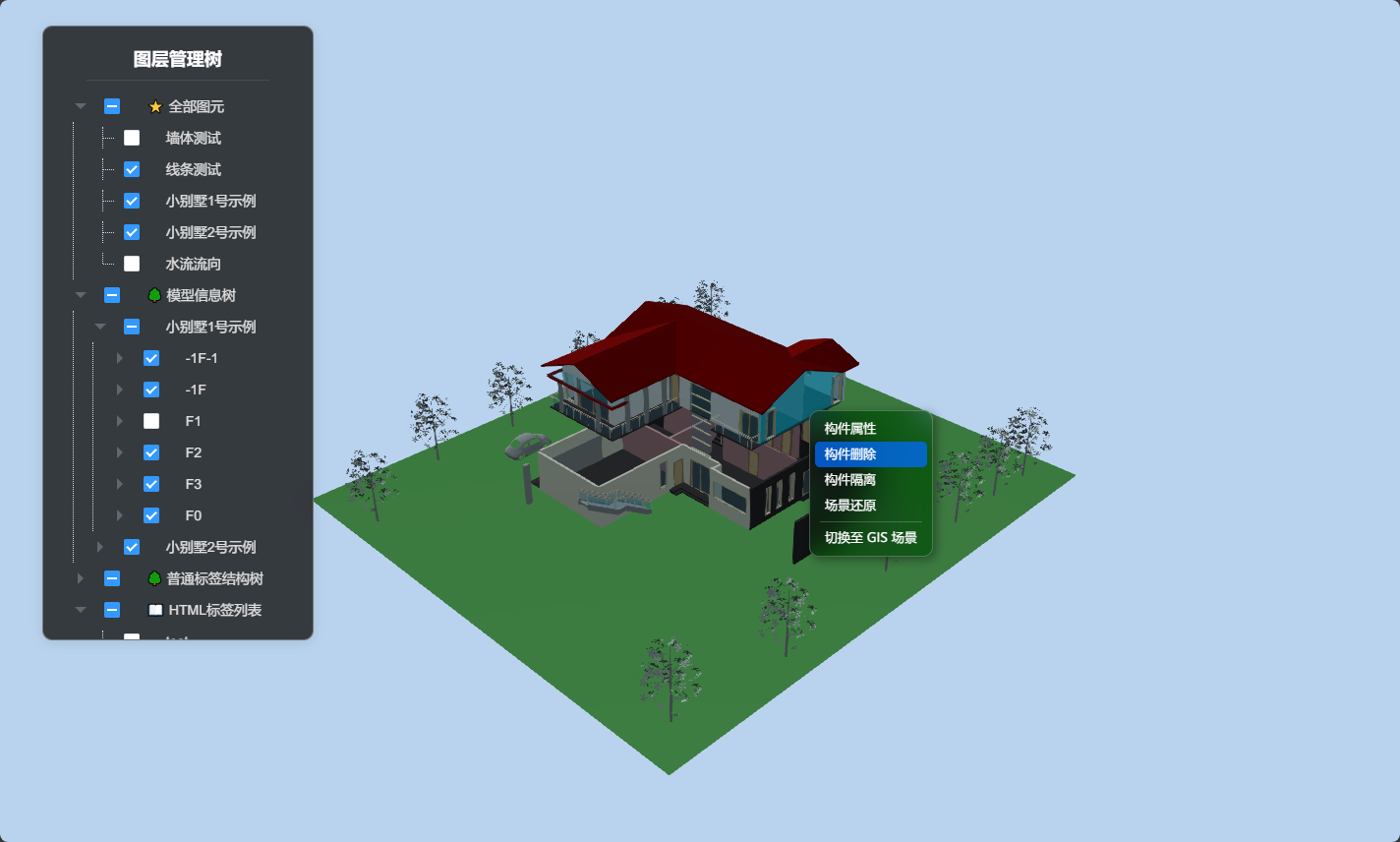

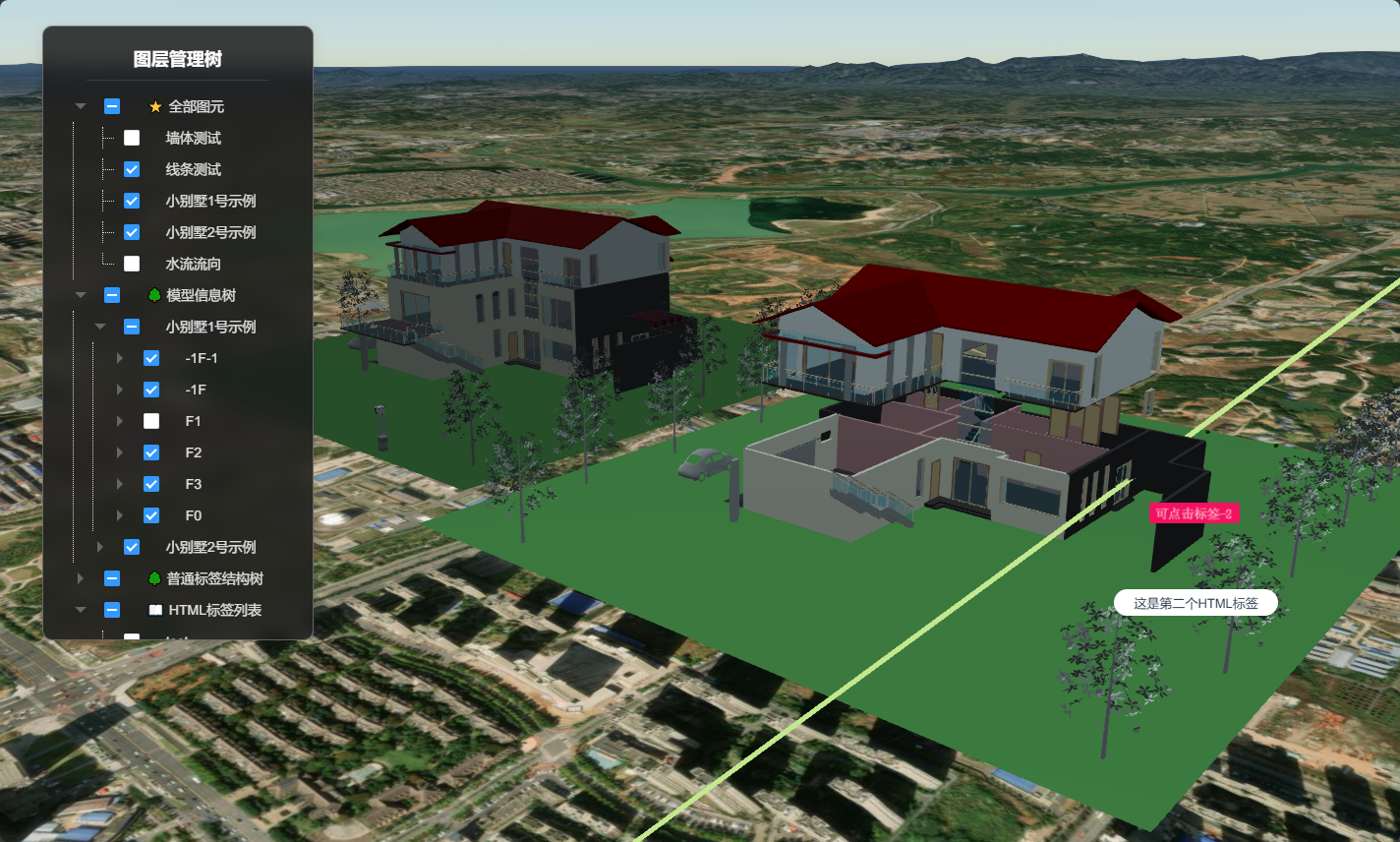

</style>示例运行结果
调用代码示例中的关键代码
模型信息树需在调用代码中绑定：
js
// 绑定信息树
let modelOption = {
...options,
tileset: cityModel
}
this.$refs.lcSetId.nodesList['model'].push(modelOption)调用初始化（需要将实例化的uniCore传入）：
js
this.$refs.lcSetId.init(uniCore);拓展
本文在加载模型时还使用了 利用回调函数改变模型着色器 的方法调整了单独示例模型的亮度，使其展示效果更好。
