天体、雾、大气、光照详细设置
其他方法 - moon/fog/sun/skyBox
方法介绍
UniCore viewer 提供 moon/fog/sun/skyBox 方法用于设置天体、雾等特效的开关。
代码示例
js
// 关闭太阳，月亮，天空盒，雾等相关特效
uniCore.viewer.scene.moon.show = false;
uniCore.viewer.scene.fog.enabled = false;
uniCore.viewer.scene.sun.show = false;
uniCore.viewer.scene.skyBox.show = false;详细设置

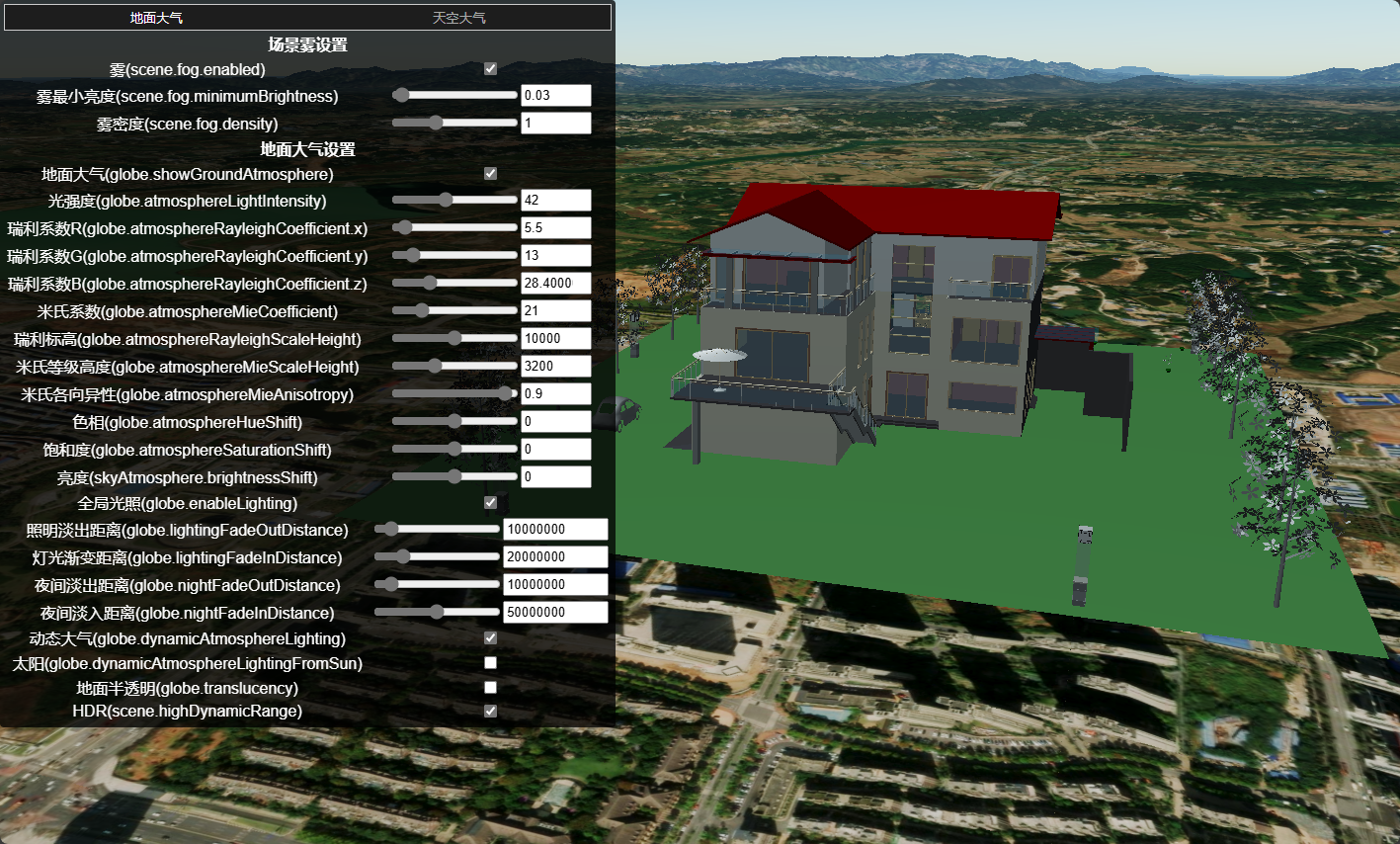

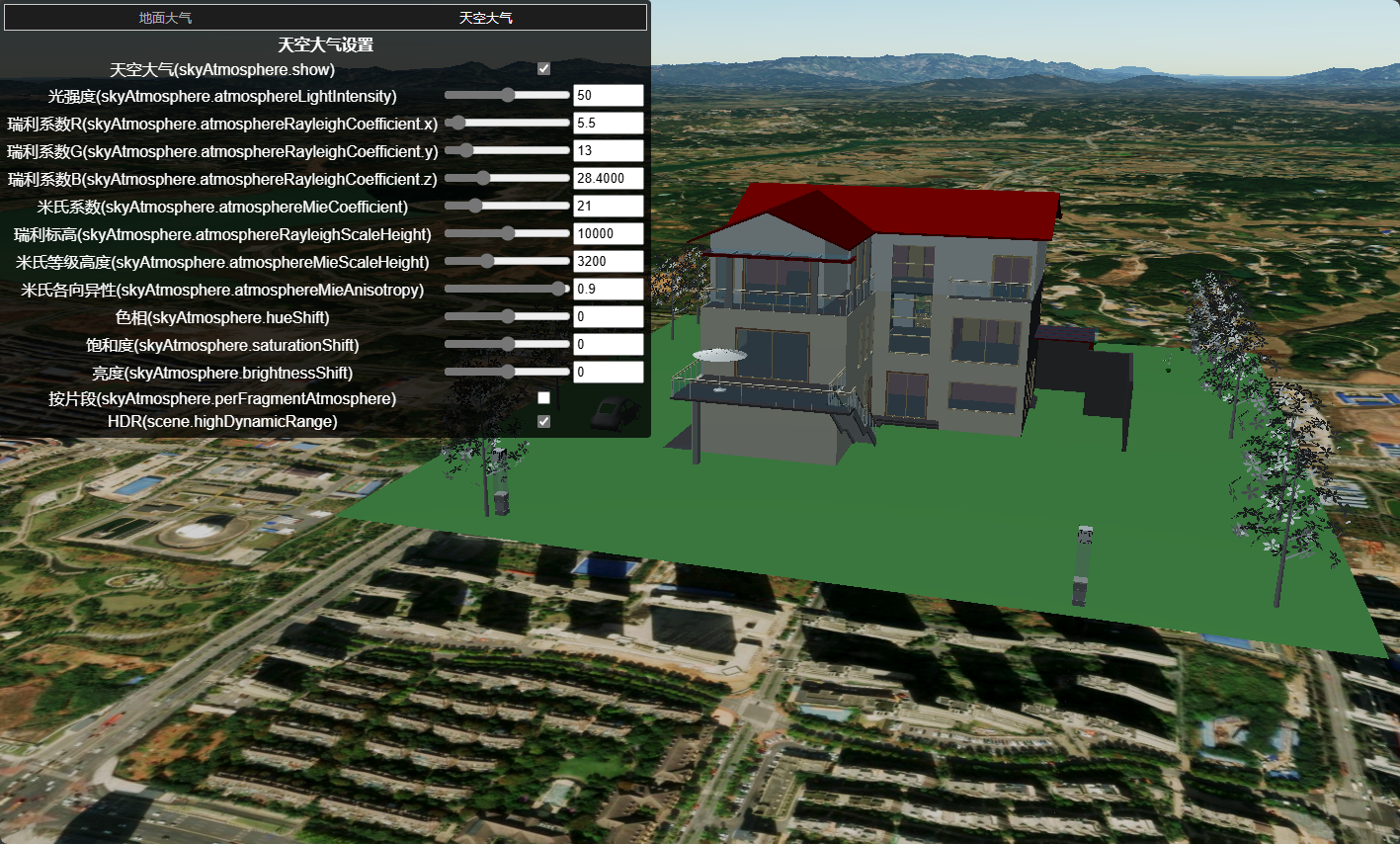

你可使用更详尽的设置面板进行调整，在参数后的括号内代表该参数的 API 方法。
在线演示
点击 在线链接 以查看在线演示。
其中的 scene 、 globe 、 skyAtmosphere 可使用如下方法获取。
js
const viewer = uniCore.viewer;
const scene = viewer.scene;
const globe = scene.globe;
const skyAtmosphere = scene.skyAtmosphere;
相关代码
以下代码可直接拷贝至项目使用。
js
<template>
<div id="unicoreContainer">
<div id="toolbar">
<div class="tab">
<button
class="tablinks active"
onclick="setActiveTab(event, 'ground-table')"
>
地面大气
</button>
<button class="tablinks" onclick="setActiveTab(event, 'sky-table')">
天空大气
</button>
</div>
<table id="ground-table" class="tabcontent">
<tbody>
<tr>
<th colspan="2">场景雾设置</th>
</tr>
<tr>
<td>雾(scene.fog.enabled)</td>
<td>
<input type="checkbox" data-bind="checked: showFog" />
</td>
</tr>
<tr>
<td>雾最小亮度(scene.fog.minimumBrightness)</td>
<td>
<input
type="range"
min="0.0"
max="1.0"
step="0.01"
data-bind="value: minimumBrightness, valueUpdate: 'input'"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: minimumBrightness, enable: showFog"
/>
</td>
</tr>
<tr>
<td>雾密度(scene.fog.density)</td>
<td>
<input
type="range"
min="0.5"
max="2.0"
step="0.1"
data-bind="value: density, valueUpdate: 'input'"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: density, enable: showFog"
/>
</td>
</tr>
<tr>
<th colspan="2">地面大气设置</th>
</tr>
<tr>
<td>地面大气(globe.showGroundAtmosphere)</td>
<td>
<input
type="checkbox"
data-bind="checked: showGroundAtmosphere"
/>
</td>
</tr>
<tr>
<td>光强度(globe.atmosphereLightIntensity)</td>
<td>
<input
type="range"
min="0.0"
max="100.0"
step="1"
data-bind="value: groundAtmosphereLightIntensity, valueUpdate: 'input', enable: (showGroundAtmosphere || showFog)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: groundAtmosphereLightIntensity"
/>
</td>
</tr>
<tr>
<td>瑞利系数R(globe.atmosphereRayleighCoefficient.x)</td>
<td>
<input
type="range"
min="0.0"
max="100.0"
step="1"
data-bind="value: groundAtmosphereRayleighCoefficientR, valueUpdate: 'input', enable: (showGroundAtmosphere || showFog)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: groundAtmosphereRayleighCoefficientR"
/>
</td>
</tr>
<tr>
<td>瑞利系数G(globe.atmosphereRayleighCoefficient.y)</td>
<td>
<input
type="range"
min="0.0"
max="100.0"
step="1"
data-bind="value: groundAtmosphereRayleighCoefficientG, valueUpdate: 'input', enable: (showGroundAtmosphere || showFog)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: groundAtmosphereRayleighCoefficientG"
/>
</td>
</tr>
<tr>
<td>瑞利系数B(globe.atmosphereRayleighCoefficient.z)</td>
<td>
<input
type="range"
min="0.0"
max="100.0"
step="1"
data-bind="value: groundAtmosphereRayleighCoefficientB, valueUpdate: 'input', enable: (showGroundAtmosphere || showFog)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: groundAtmosphereRayleighCoefficientB"
/>
</td>
</tr>
<tr>
<td>米氏系数(globe.atmosphereMieCoefficient)</td>
<td>
<input
type="range"
min="0.0"
max="100.0"
step="1"
data-bind="value: groundAtmosphereMieCoefficient, valueUpdate: 'input', enable: (showGroundAtmosphere || showFog)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: groundAtmosphereMieCoefficient"
/>
</td>
</tr>
<tr>
<td>瑞利标高(globe.atmosphereRayleighScaleHeight)</td>
<td>
<input
type="range"
min="0"
max="2e4"
step="1e2"
data-bind="value: groundAtmosphereRayleighScaleHeight, valueUpdate: 'input', enable: (showGroundAtmosphere || showFog)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: groundAtmosphereRayleighScaleHeight"
/>
</td>
</tr>
<tr>
<td>米氏等级高度(globe.atmosphereMieScaleHeight)</td>
<td>
<input
type="range"
min="0"
max="1e4"
step="1e2"
data-bind="value: groundAtmosphereMieScaleHeight, valueUpdate: 'input', enable: (showGroundAtmosphere || showFog)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: groundAtmosphereMieScaleHeight"
/>
</td>
</tr>
<tr>
<td>米氏各向异性(globe.atmosphereMieAnisotropy)</td>
<td>
<input
type="range"
min="-1.0"
max="1.0"
step="0.1"
data-bind="value: groundAtmosphereMieAnisotropy, valueUpdate: 'input', enable: (showGroundAtmosphere || showFog)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: groundAtmosphereMieAnisotropy"
/>
</td>
</tr>
<tr>
<td>色相(globe.atmosphereHueShift)</td>
<td>
<input
type="range"
min="-1"
max="1"
step="0.01"
data-bind="value: groundHueShift, valueUpdate: 'input', enable: (showGroundAtmosphere || showFog)"
/>
<input type="text" size="5" data-bind="value: groundHueShift" />
</td>
</tr>
<tr>
<td>饱和度(globe.atmosphereSaturationShift)</td>
<td>
<input
type="range"
min="-1"
max="1"
step="0.01"
data-bind="value: groundSaturationShift, valueUpdate: 'input', enable: (showGroundAtmosphere || showFog)"
/>
<input
type="text"
size="5"
data-bind="value: groundSaturationShift"
/>
</td>
</tr>
<tr>
<td>亮度(skyAtmosphere.brightnessShift)</td>
<td>
<input
type="range"
min="-1"
max="1"
step="0.01"
data-bind="value: skyBrightnessShift, valueUpdate: 'input', enable: (showGroundAtmosphere || showFog)"
/>
<input
type="text"
size="5"
data-bind="value: skyBrightnessShift"
/>
</td>
</tr>
<tr>
<td>全局光照(globe.enableLighting)</td>
<td>
<input
type="checkbox"
data-bind="checked: enableLighting, enable: (showGroundAtmosphere || showFog)"
/>
</td>
</tr>
<tr>
<td>照明淡出距离(globe.lightingFadeOutDistance)</td>
<td>
<input
type="range"
min="1e6"
max="1e8"
step="1e6"
data-bind="value: lightingFadeOutDistance, valueUpdate: 'input', enable: showGroundAtmosphere"
/>
<input
type="text"
size="10"
data-bind="value: lightingFadeOutDistance"
/>
</td>
</tr>
<tr>
<td>灯光渐变距离(globe.lightingFadeInDistance)</td>
<td>
<input
type="range"
min="1e6"
max="1e8"
step="1e6"
data-bind="value: lightingFadeInDistance, valueUpdate: 'input', enable: showGroundAtmosphere"
/>
<input
type="text"
size="10"
data-bind="value: lightingFadeInDistance"
/>
</td>
</tr>
<tr>
<td>夜间淡出距离(globe.nightFadeOutDistance)</td>
<td>
<input
type="range"
min="1e6"
max="1e8"
step="1e6"
data-bind="value: nightFadeOutDistance, valueUpdate: 'input', enable: (showGroundAtmosphere && enableLighting)"
/>
<input
type="text"
size="10"
data-bind="value: nightFadeOutDistance"
/>
</td>
</tr>
<tr>
<td>夜间淡入距离(globe.nightFadeInDistance)</td>
<td>
<input
type="range"
min="1e6"
max="1e8"
step="1e6"
data-bind="value: nightFadeInDistance, valueUpdate: 'input', enable: (showGroundAtmosphere && enableLighting)"
/>
<input
type="text"
size="10"
data-bind="value: nightFadeInDistance"
/>
</td>
</tr>
<tr>
<td>动态大气(globe.dynamicAtmosphereLighting)</td>
<td>
<input
type="checkbox"
data-bind="checked: dynamicLighting, enable: (showGroundAtmosphere || showFog)"
/>
</td>
</tr>
<tr>
<td>太阳(globe.dynamicAtmosphereLightingFromSun)</td>
<td>
<input
type="checkbox"
data-bind="checked: dynamicLightingFromSun, enable: (showGroundAtmosphere || showFog)"
/>
</td>
</tr>
<tr>
<td>地面半透明(globe.translucency)</td>
<td>
<input type="checkbox" data-bind="checked: groundTranslucency" />
</td>
</tr>
<tr>
<td>HDR(scene.highDynamicRange)</td>
<td>
<input type="checkbox" data-bind="checked: hdr" />
</td>
</tr>
</tbody>
</table>
<table id="sky-table" class="tabcontent" style="display: none">
<tbody>
<tr>
<th colspan="2">天空大气设置</th>
</tr>
<tr>
<td>天空大气(skyAtmosphere.show)</td>
<td>
<input type="checkbox" data-bind="checked: showSkyAtmosphere" />
</td>
</tr>
<tr>
<td>光强度(skyAtmosphere.atmosphereLightIntensity)</td>
<td>
<input
type="range"
min="0.0"
max="100.0"
step="1"
data-bind="value: skyAtmosphereLightIntensity, valueUpdate: 'input', enable: (showSkyAtmosphere)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: skyAtmosphereLightIntensity"
/>
</td>
</tr>
<tr>
<td>瑞利系数R(skyAtmosphere.atmosphereRayleighCoefficient.x)</td>
<td>
<input
type="range"
min="0.0"
max="100.0"
step="1"
data-bind="value: skyAtmosphereRayleighCoefficientR, valueUpdate: 'input', enable: (showSkyAtmosphere)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: skyAtmosphereRayleighCoefficientR"
/>
</td>
</tr>
<tr>
<td>瑞利系数G(skyAtmosphere.atmosphereRayleighCoefficient.y)</td>
<td>
<input
type="range"
min="0.0"
max="100.0"
step="1"
data-bind="value: skyAtmosphereRayleighCoefficientG, valueUpdate: 'input', enable: (showSkyAtmosphere)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: skyAtmosphereRayleighCoefficientG"
/>
</td>
</tr>
<tr>
<td>瑞利系数B(skyAtmosphere.atmosphereRayleighCoefficient.z)</td>
<td>
<input
type="range"
min="0.0"
max="100.0"
step="1"
data-bind="value: skyAtmosphereRayleighCoefficientB, valueUpdate: 'input', enable: (showSkyAtmosphere)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: skyAtmosphereRayleighCoefficientB"
/>
</td>
</tr>
<tr>
<td>米氏系数(skyAtmosphere.atmosphereMieCoefficient)</td>
<td>
<input
type="range"
min="0.0"
max="100.0"
step="1"
data-bind="value: skyAtmosphereMieCoefficient, valueUpdate: 'input', enable: (showSkyAtmosphere)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: skyAtmosphereMieCoefficient"
/>
</td>
</tr>
<tr>
<td>瑞利标高(skyAtmosphere.atmosphereRayleighScaleHeight)</td>
<td>
<input
type="range"
min="0"
max="2e4"
step="1e2"
data-bind="value: skyAtmosphereRayleighScaleHeight, valueUpdate: 'input', enable: (showSkyAtmosphere)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: skyAtmosphereRayleighScaleHeight"
/>
</td>
</tr>
<tr>
<td>米氏等级高度(skyAtmosphere.atmosphereMieScaleHeight)</td>
<td>
<input
type="range"
min="0"
max="1e4"
step="1e2"
data-bind="value: skyAtmosphereMieScaleHeight, valueUpdate: 'input', enable: (showSkyAtmosphere)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: skyAtmosphereMieScaleHeight"
/>
</td>
</tr>
<tr>
<td>米氏各向异性(skyAtmosphere.atmosphereMieAnisotropy)</td>
<td>
<input
type="range"
min="-1.0"
max="1.0"
step="0.1"
data-bind="value: skyAtmosphereMieAnisotropy, valueUpdate: 'input', enable: (showSkyAtmosphere)"
/>
<input
class="numinput"
type="number"
size="5"
data-bind="value: skyAtmosphereMieAnisotropy"
/>
</td>
</tr>
<tr>
<td>色相(skyAtmosphere.hueShift)</td>
<td>
<input
type="range"
min="-1"
max="1"
step="0.01"
data-bind="value: skyHueShift, valueUpdate: 'input', enable: (showSkyAtmosphere)"
/>
<input type="text" size="5" data-bind="value: skyHueShift" />
</td>
</tr>
<tr>
<td>饱和度(skyAtmosphere.saturationShift)</td>
<td>
<input
type="range"
min="-1"
max="1"
step="0.01"
data-bind="value: skySaturationShift, valueUpdate: 'input', enable: (showSkyAtmosphere)"
/>
<input
type="text"
size="5"
data-bind="value: skySaturationShift"
/>
</td>
</tr>
<tr>
<td>亮度(skyAtmosphere.brightnessShift)</td>
<td>
<input
type="range"
min="-1"
max="1"
step="0.01"
data-bind="value: skyBrightnessShift, valueUpdate: 'input', enable: (showSkyAtmosphere)"
/>
<input
type="text"
size="5"
data-bind="value: skyBrightnessShift"
/>
</td>
</tr>
<tr>
<td>按片段(skyAtmosphere.perFragmentAtmosphere)</td>
<td>
<input
type="checkbox"
data-bind="checked: perFragmentAtmosphere, enable: (showSkyAtmosphere)"
/>
</td>
</tr>
<tr>
<td>HDR(scene.highDynamicRange)</td>
<td>
<input type="checkbox" data-bind="checked: hdr" />
</td>
</tr>
</tbody>
</table>
</div>
</div>
</template>
<script>
import { UniCore } from 'unicore-sdk'
import { config } from 'unicore-sdk/unicore.config'
import 'unicore-sdk/Widgets/widgets.css'
import * as Cesium from 'cesium'
export default {
// 生命周期 - 挂载完成（可以访问DOM元素）
mounted () {
this.init();
},
// 方法集合
methods: {
/**
* 通用图形引擎初始化
*/
init () {
// 初始化UniCore
// 目前采用Cesium的地形&底图数据，这里配置Cesium的token
let accessToken = "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJqdGkiOiIxNjEwMzI4My01MjBmLTQzYzktOGZiMS0wMDRhZjE0N2IyMGIiLCJpZCI6MTc1NzkyLCJpYXQiOjE3MTM3NzQ3OTh9.zU-R4MNvHr8rvn1v28PQfDImyutnpPF2lmEgGeSPckQ";
// 初始化unicore
let uniCore = new UniCore(config, accessToken);
uniCore.init("unicoreContainer");
// 视角初始化
uniCore.position.buildingPosition(uniCore.viewer, [113.12380548015745, 28.250758831850005, 700], -20, -45, 1);
const viewer = uniCore.viewer;
const scene = viewer.scene;
const globe = scene.globe;
const skyAtmosphere = scene.skyAtmosphere;
scene.highDynamicRange = true;
globe.enableLighting = true;
globe.atmosphereLightIntensity = 20.0;
viewer.clock.currentTime = Cesium.JulianDate.fromIso8601(
"2022-03-23T03:31:42.34200000000419095Z"
);
const canvas = viewer.canvas;
canvas.setAttribute("tabindex", "0"); // needed to put focus on the canvas
canvas.onclick = function () {
canvas.focus();
};
const defaultGroundAtmosphereLightIntensity =
globe.atmosphereLightIntensity;
const defaultGroundAtmosphereRayleighCoefficient =
globe.atmosphereRayleighCoefficient;
const defaultGroundAtmosphereMieCoefficient =
globe.atmosphereMieCoefficient;
const defaultGroundAtmosphereMieAnisotropy =
globe.atmosphereMieAnisotropy;
const defaultGroundAtmosphereRayleighScaleHeight =
globe.atmosphereRayleighScaleHeight;
const defaultGroundAtmosphereMieScaleHeight =
globe.atmosphereMieScaleHeight;
const defaultGroundAtmosphereHueShift = globe.atmosphereHueShift;
const defaultGroundAtmosphereSaturationShift =
globe.atmosphereSaturationShift;
const defaultGroundAtmosphereBrightnessShift =
globe.atmosphereBrightnessShift;
const defaultLightFadeOut = globe.lightingFadeOutDistance;
const defaultLightFadeIn = globe.lightingFadeInDistance;
const defaultNightFadeOut = globe.nightFadeOutDistance;
const defaultNightFadeIn = globe.nightFadeInDistance;
const defaultSkyAtmosphereLightIntensity =
skyAtmosphere.atmosphereLightIntensity;
const defaultSkyAtmosphereRayleighCoefficient =
skyAtmosphere.atmosphereRayleighCoefficient;
const defaultSkyAtmosphereMieCoefficient =
skyAtmosphere.atmosphereMieCoefficient;
const defaultSkyAtmosphereMieAnisotropy =
skyAtmosphere.atmosphereMieAnisotropy;
const defaultSkyAtmosphereRayleighScaleHeight =
skyAtmosphere.atmosphereRayleighScaleHeight;
const defaultSkyAtmosphereMieScaleHeight =
skyAtmosphere.atmosphereMieScaleHeight;
const defaultSkyAtmosphereHueShift = skyAtmosphere.hueShift;
const defaultSkyAtmosphereSaturationShift =
skyAtmosphere.saturationShift;
const defaultSkyAtmosphereBrightnessShift =
skyAtmosphere.brightnessShift;
const viewModel = {
// Globe settings
enableTerrain: false,
enableLighting: true,
groundTranslucency: false,
// Ground atmosphere settings
showGroundAtmosphere: true,
groundAtmosphereLightIntensity: defaultGroundAtmosphereLightIntensity,
groundAtmosphereRayleighCoefficientR:
defaultGroundAtmosphereRayleighCoefficient.x / 1e-6,
groundAtmosphereRayleighCoefficientG:
defaultGroundAtmosphereRayleighCoefficient.y / 1e-6,
groundAtmosphereRayleighCoefficientB:
defaultGroundAtmosphereRayleighCoefficient.z / 1e-6,
groundAtmosphereMieCoefficient:
defaultGroundAtmosphereMieCoefficient.x / 1e-6,
groundAtmosphereRayleighScaleHeight: defaultGroundAtmosphereRayleighScaleHeight,
groundAtmosphereMieScaleHeight: defaultGroundAtmosphereMieScaleHeight,
groundAtmosphereMieAnisotropy: defaultGroundAtmosphereMieAnisotropy,
groundHueShift: defaultGroundAtmosphereHueShift,
groundSaturationShift: defaultGroundAtmosphereSaturationShift,
groundBrightnessShift: defaultGroundAtmosphereBrightnessShift,
lightingFadeOutDistance: defaultLightFadeOut,
lightingFadeInDistance: defaultLightFadeIn,
nightFadeOutDistance: defaultNightFadeOut,
nightFadeInDistance: defaultNightFadeIn,
// Sky atmosphere settings
showSkyAtmosphere: true,
skyAtmosphereLightIntensity: defaultSkyAtmosphereLightIntensity,
skyAtmosphereRayleighCoefficientR:
defaultSkyAtmosphereRayleighCoefficient.x / 1e-6,
skyAtmosphereRayleighCoefficientG:
defaultSkyAtmosphereRayleighCoefficient.y / 1e-6,
skyAtmosphereRayleighCoefficientB:
defaultSkyAtmosphereRayleighCoefficient.z / 1e-6,
skyAtmosphereMieCoefficient:
defaultSkyAtmosphereMieCoefficient.x / 1e-6,
skyAtmosphereRayleighScaleHeight: defaultSkyAtmosphereRayleighScaleHeight,
skyAtmosphereMieScaleHeight: defaultSkyAtmosphereMieScaleHeight,
skyAtmosphereMieAnisotropy: defaultSkyAtmosphereMieAnisotropy,
skyHueShift: defaultSkyAtmosphereHueShift,
skySaturationShift: defaultSkyAtmosphereSaturationShift,
skyBrightnessShift: defaultSkyAtmosphereBrightnessShift,
perFragmentAtmosphere: false,
dynamicLighting: true,
dynamicLightingFromSun: false,
// Fog settings
showFog: true,
density: 1.0,
minimumBrightness: 0.03,
// Scene settings
hdr: true,
};
Cesium.knockout.track(viewModel);
const toolbar = document.getElementById("toolbar");
Cesium.knockout.applyBindings(viewModel, toolbar);
Cesium.knockout
.getObservable(viewModel, "showFog")
.subscribe(function (newValue) {
scene.fog.enabled = newValue;
});
Cesium.knockout
.getObservable(viewModel, "enableLighting")
.subscribe(function (newValue) {
globe.enableLighting = newValue;
});
Cesium.knockout
.getObservable(viewModel, "showGroundAtmosphere")
.subscribe(function (newValue) {
globe.showGroundAtmosphere = newValue;
});
Cesium.knockout
.getObservable(viewModel, "dynamicLighting")
.subscribe(function (newValue) {
globe.dynamicAtmosphereLighting = newValue;
});
Cesium.knockout
.getObservable(viewModel, "dynamicLightingFromSun")
.subscribe(function (newValue) {
globe.dynamicAtmosphereLightingFromSun = newValue;
});
Cesium.knockout
.getObservable(viewModel, "density")
.subscribe(function (newValue) {
viewer.scene.fog.density = 2.0e-4 * newValue;
});
Cesium.knockout
.getObservable(viewModel, "minimumBrightness")
.subscribe(function (newValue) {
viewer.scene.fog.minimumBrightness = newValue;
});
// Ground Atmosphere
Cesium.knockout
.getObservable(viewModel, "groundAtmosphereLightIntensity")
.subscribe(function (newValue) {
globe.atmosphereLightIntensity = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "groundAtmosphereRayleighCoefficientR")
.subscribe(function (newValue) {
globe.atmosphereRayleighCoefficient.x = parseFloat(newValue) * 1e-6;
});
Cesium.knockout
.getObservable(viewModel, "groundAtmosphereRayleighCoefficientG")
.subscribe(function (newValue) {
globe.atmosphereRayleighCoefficient.y = parseFloat(newValue) * 1e-6;
});
Cesium.knockout
.getObservable(viewModel, "groundAtmosphereRayleighCoefficientB")
.subscribe(function (newValue) {
globe.atmosphereRayleighCoefficient.z = parseFloat(newValue) * 1e-6;
});
Cesium.knockout
.getObservable(viewModel, "groundAtmosphereMieCoefficient")
.subscribe(function (newValue) {
const v = parseFloat(newValue) * 1e-6;
globe.atmosphereMieCoefficient = new Cesium.Cartesian3(v, v, v);
});
Cesium.knockout
.getObservable(viewModel, "groundAtmosphereRayleighScaleHeight")
.subscribe(function (newValue) {
globe.atmosphereRayleighScaleHeight = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "groundAtmosphereMieScaleHeight")
.subscribe(function (newValue) {
globe.atmosphereMieScaleHeight = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "groundAtmosphereMieAnisotropy")
.subscribe(function (newValue) {
globe.atmosphereMieAnisotropy = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "groundHueShift")
.subscribe(function (newValue) {
globe.atmosphereHueShift = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "groundSaturationShift")
.subscribe(function (newValue) {
globe.atmosphereSaturationShift = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "groundBrightnessShift")
.subscribe(function (newValue) {
globe.atmosphereBrightnessShift = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "lightingFadeOutDistance")
.subscribe(function (newValue) {
globe.lightingFadeOutDistance = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "lightingFadeInDistance")
.subscribe(function (newValue) {
globe.lightingFadeInDistance = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "nightFadeOutDistance")
.subscribe(function (newValue) {
globe.nightFadeOutDistance = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "nightFadeInDistance")
.subscribe(function (newValue) {
globe.nightFadeInDistance = parseFloat(newValue);
});
// Sky Atmosphere
Cesium.knockout
.getObservable(viewModel, "showSkyAtmosphere")
.subscribe(function (newValue) {
skyAtmosphere.show = newValue;
});
Cesium.knockout
.getObservable(viewModel, "skyAtmosphereLightIntensity")
.subscribe(function (newValue) {
skyAtmosphere.atmosphereLightIntensity = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "skyAtmosphereRayleighCoefficientR")
.subscribe(function (newValue) {
skyAtmosphere.atmosphereRayleighCoefficient.x =
parseFloat(newValue) * 1e-6;
});
Cesium.knockout
.getObservable(viewModel, "skyAtmosphereRayleighCoefficientG")
.subscribe(function (newValue) {
skyAtmosphere.atmosphereRayleighCoefficient.y =
parseFloat(newValue) * 1e-6;
});
Cesium.knockout
.getObservable(viewModel, "skyAtmosphereRayleighCoefficientB")
.subscribe(function (newValue) {
skyAtmosphere.atmosphereRayleighCoefficient.z =
parseFloat(newValue) * 1e-6;
});
Cesium.knockout
.getObservable(viewModel, "skyAtmosphereMieCoefficient")
.subscribe(function (newValue) {
const v = parseFloat(newValue) * 1e-6;
skyAtmosphere.atmosphereMieCoefficient = new Cesium.Cartesian3(
v,
v,
v
);
});
Cesium.knockout
.getObservable(viewModel, "skyAtmosphereRayleighScaleHeight")
.subscribe(function (newValue) {
skyAtmosphere.atmosphereRayleighScaleHeight = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "skyAtmosphereMieScaleHeight")
.subscribe(function (newValue) {
skyAtmosphere.atmosphereMieScaleHeight = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "skyAtmosphereMieAnisotropy")
.subscribe(function (newValue) {
skyAtmosphere.atmosphereMieAnisotropy = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "skyHueShift")
.subscribe(function (newValue) {
skyAtmosphere.hueShift = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "skySaturationShift")
.subscribe(function (newValue) {
skyAtmosphere.saturationShift = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "skyBrightnessShift")
.subscribe(function (newValue) {
skyAtmosphere.brightnessShift = parseFloat(newValue);
});
Cesium.knockout
.getObservable(viewModel, "perFragmentAtmosphere")
.subscribe(function (newValue) {
scene.skyAtmosphere.perFragmentAtmosphere = newValue;
});
Cesium.knockout
.getObservable(viewModel, "hdr")
.subscribe(function (newValue) {
scene.highDynamicRange = newValue;
});
Cesium.knockout
.getObservable(viewModel, "groundTranslucency")
.subscribe(function (newValue) {
globe.translucency.enabled = newValue;
globe.translucency.frontFaceAlpha = 0.1;
globe.translucency.backFaceAlpha = 0.1;
});
window.setActiveTab = function (event, tableId) {
let i;
const tabcontent = document.getElementsByClassName("tabcontent");
for (i = 0; i < tabcontent.length; i++) {
tabcontent[i].style.display = "none";
}
const tablinks = document.getElementsByClassName("tablinks");
for (i = 0; i < tablinks.length; i++) {
tablinks[i].className = tablinks[i].className.replace(
" active",
""
);
}
document.getElementById(tableId).style.display = "block";
event.currentTarget.className += " active";
};
let options = {
id: '小别墅'
}
//加载3dtiles
uniCore.model.createTileset('../../assets/3Dtiles/sample3_方法2_小别墅属性(1)/tileset.json', options).then(cityLeft => {
uniCore.model.changeModelPos(cityLeft, [113.12098820449636, 28.256150218457687, 130], [0, 0, 0], [23.8, 23.8, 23.8])
})
}
}
}
</script>
<style scoped>
#unicoreContainer {
position: absolute;
top: 0;
left: 0;
width: 100%;
height: 100%;
overflow: hidden;
background: black;
}
#toolbar {
position: absolute;
top: 0;
z-index: 999;
background: rgb(0 0 0 / 76%);
padding: 4px;
border-radius: 4px;
color: #ffffff;
}
#toolbar input {
vertical-align: middle;
padding-top: 2px;
padding-bottom: 2px;
}
.tab {
overflow: hidden;
border: 1px solid #ccc;
background-color: #f1f1f1;
display: grid;
grid-auto-flow: column;
}
.tab button {
background-color: rgb(0 0 0 / 88%);
color: #ffffff9d;
float: left;
border: none;
outline: none;
cursor: pointer;
padding: 4px 4px;
}
.tab button.active {
background-color: rgb(0 0 0 / 88%);
color: #fff;
}
.numinput {
width: 64px;
}
</style>
